Advanced GD & T

    Unique ability to evaluate complex GD&T to the ANSI Y14.5 standard.

    When callouts include mobility on multiple datums conventional measurement equipment is unable to evaluate the correct value. As per the ANSI specification all features with same datum reference must be evaluated simultaneously.

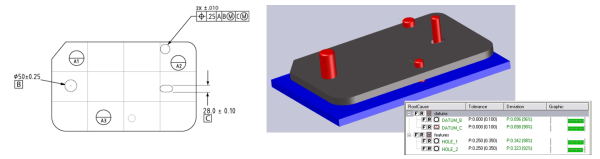

    In this simplified example when the part is placed on the pin gauge all pins must fit in the appropriate features and the part can be “wiggled” on the datum pins to take advantage of the available bonus tolerance earned.

    describe the imageWhen calculations of this type are not done properly it can result in two possibilities, good parts being rejected or bad parts being accepted, both of which have a negative impact on your bottom line.

    CheckMate software eliminates both of these scenarios, reducing manufacturing cost and improving customer satisfaction.
